Terraform : Une première VM dans Azure

Posted by

En premier, on déclare le provider :

provider "azurerm" {
  features {}
}

Nos variables : la région Azure et les credentials pour la VM qui va être déployée

variable "location" {
  type    = string
  default = "westeurope"
}

variable "lnxuser" {
  type    = string
  default = "super"
}

variable "lnxpwd" {
  type    = string
  default = "Azerty37!"
}

Toutes nos ressources vont être dans un même groupe de ressources :

resource "azurerm_resource_group" "rg-dev" {
  name     = "rg-dev"
  location = var.location
  tags = {
    environment = "Development"
  }
}

Nous aurons un vNet en 10.0.0.0/16 pour notre site Azure que l’on va redécouper et un subnet 10.0.1.0/24 pour notre VM de dev. Enfin, notre VM sera directement accessible avec une IP publique qu’il faut instancier séparément.

resource "azurerm_virtual_network" "azvnet" {
  name                = "vNet-${var.location}"
  address_space       = ["10.0.0.0/16"]
  location            = azurerm_resource_group.rg-dev.location
  resource_group_name = azurerm_resource_group.rg-dev.name
}

resource "azurerm_subnet" "net-dev" {
  name                 = "net-dev"
  resource_group_name  = azurerm_resource_group.rg-dev.name
  virtual_network_name = azurerm_virtual_network.azvnet.name
  address_prefixes     = ["10.0.1.0/24"]
}

resource "azurerm_public_ip" "pip-azvm01" {
  name                = "pip-azvm01"
  resource_group_name = azurerm_resource_group.rg-dev.name
  location            = azurerm_resource_group.rg-dev.location
  allocation_method   = "Dynamic"

  tags = {
    environment = "Development"
  }
}

On peut désormais déployer notre VM avec la dernière image Ubuntu 20.04 LTS. Pour des questions de coûts, elle sera de type Standard_B1ls.

resource "azurerm_linux_virtual_machine" "azvm01" {
  name                            = "azvm01"
  resource_group_name             = azurerm_resource_group.rg-dev.name
  location                        = var.location
  size                            = "Standard_B1ls"
  admin_username                  = var.lnxuser
  admin_password                  = var.lnxpwd
  disable_password_authentication = false
  network_interface_ids = [
    azurerm_network_interface.nic-azvm01.id,
  ]

  source_image_reference {
    publisher = "Canonical"
    offer     = "0001-com-ubuntu-server-focal"
    sku       = "20_04-lts"
    version   = "latest"
  }

  os_disk {
    storage_account_type = "Standard_LRS"
    caching              = "ReadWrite"
  }
  tags = {
    environment = "Development"
  }
}

resource "azurerm_network_interface" "nic-azvm01" {
  name                = "nic-azvm01"
  resource_group_name = azurerm_resource_group.rg-dev.name
  location            = var.location

  ip_configuration {
    name                          = "internal"
    subnet_id                     = azurerm_subnet.net-dev.id
    private_ip_address_allocation = "Dynamic"
    public_ip_address_id          = azurerm_public_ip.pip-azvm01.id
  }
  tags = {
    environment = "Development"
  }
}

On créé ensuite un Security Group qui autorise le ping et les connexions SSH entrantes que l’on attache à l’interface réseau de cette VM :

resource "azurerm_network_security_group" "nsg-linuxserver" {
  name                = "nsg-linuxserver"
  location            = azurerm_resource_group.rg-dev.location
  resource_group_name = azurerm_resource_group.rg-dev.name
  security_rule {
    access                     = "Allow"
    direction                  = "Inbound"
    name                       = "ssh"
    priority                   = 100
    protocol                   = "Tcp"
    source_port_range          = "*"
    source_address_prefix      = "*"
    destination_port_range     = "22"
    destination_address_prefix = "*"
  }
  security_rule {
    access                     = "Allow"
    direction                  = "Inbound"
    name                       = "ping"
    priority                   = 110
    protocol                   = "Icmp"
    source_port_range          = "*"
    source_address_prefix      = "*"
    destination_port_range     = "*"
    destination_address_prefix = "*"
  }
}

resource "azurerm_network_interface_security_group_association" "nsgassoc-azvm01" {
  network_interface_id      = azurerm_network_interface.nic-azvm01.id
  network_security_group_id = azurerm_network_security_group.nsg-linuxserver.id
}

Enfin, on peut rattacher un disque de données persistant de type localy redondant storage :

resource "azurerm_managed_disk" "disk01-azvm01" {
  name                 = "disk01-azvm01"
  location             = azurerm_resource_group.rg-dev.location
  create_option        = "Empty"
  disk_size_gb         = 10
  resource_group_name  = azurerm_resource_group.rg-dev.name
  storage_account_type = "Standard_LRS"
  tags = {
    environment = "Development"
  }
}

resource "azurerm_virtual_machine_data_disk_attachment" "data" {
  virtual_machine_id = azurerm_linux_virtual_machine.azvm01.id
  managed_disk_id    = azurerm_managed_disk.disk01-azvm01.id
  lun                = 0
  caching            = "None"
}

Il n’y a plus qu’à lancer le workflow Terraform :

az login
terraform init
terraform plan
terraform apply

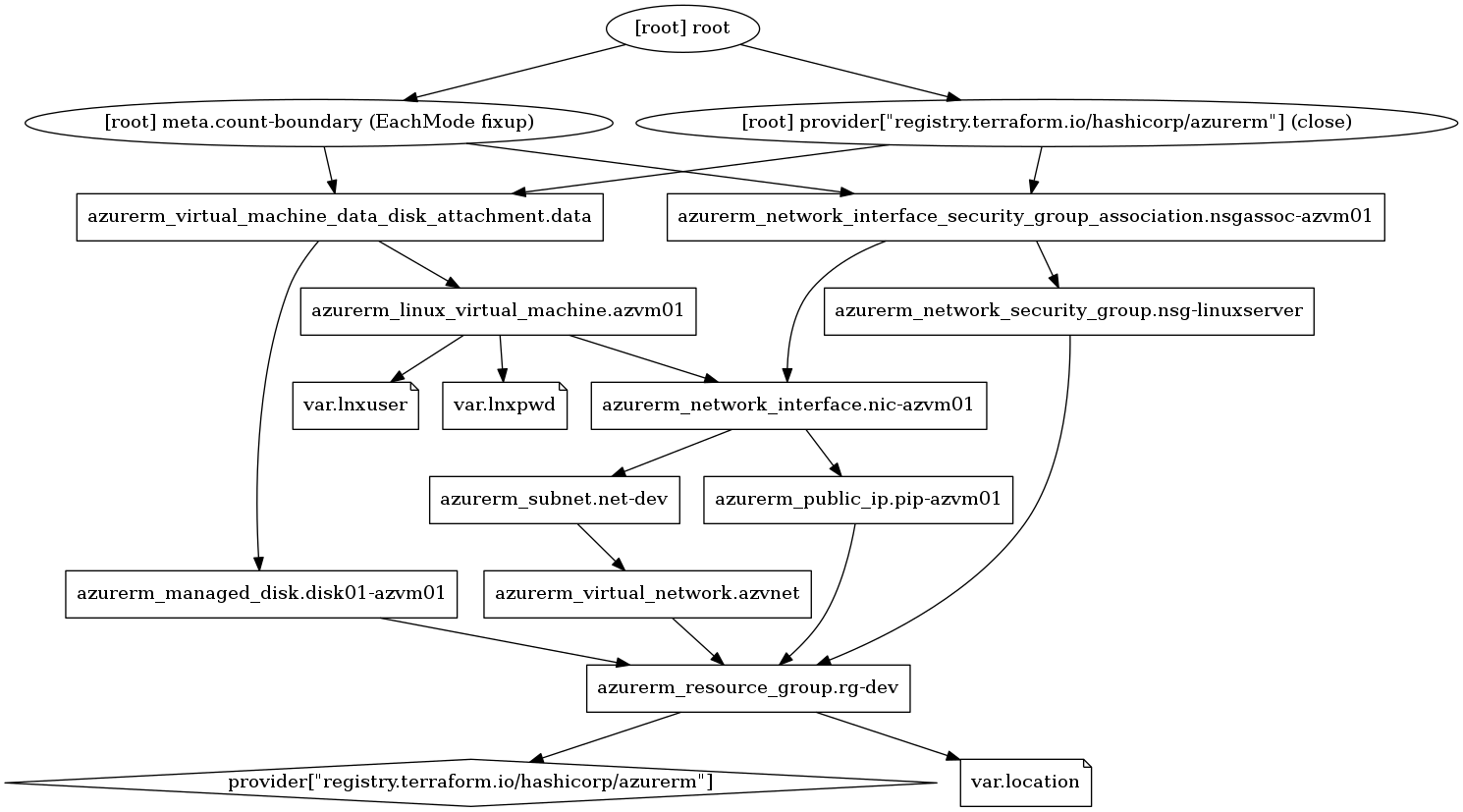

Et sinon un terraform graph donne ceci :
